Mobile Asphalt Concrete Production Facility

Overview

  • The FR System is a technology that enables the rapid on-site production and supply of functional asphalt mixtures using the Mobile Asphalt Concrete Production Facility (FR-APS and FR-S).
  • It utilizes ton-bag asphalt (pre-mix mixture) containing a medium-to-low-temperature asphalt additive.
  • Heated asphalt paving can be applied even in remote and island areas without asphalt plants, enabling quick and efficient road maintenance and repair.
  • It is an eco-friendly asphalt production and supply system that enables on-site production of colored asphalt and various functional asphalt types.
  • Background and Objectives of Technology Development

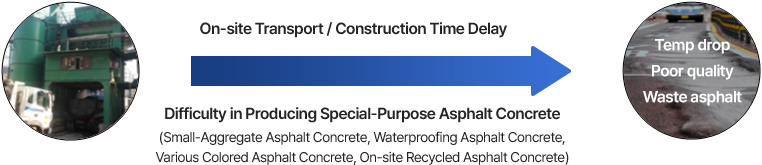

    • Issues of temperature drop, material segregation, and quality degradation during the transportation or construction of asphalt mixtures :
      On-site production, Minimized transportation time, and Resolution of quality degradation issues
    • Increase in asphalt mixture waste due to poor construction quality :
      100% recycling of waste asphalt concrete
    • Need for the rapid supply of colored and functional asphalt concrete :
      Ton-bag asphalt concrete facilitates the management of quality and temperature of special-purpose asphalt concrete.
  • Key Elements of the Technology

Features

  • Establishing a system for rapid on-site supply
  • Enabling asphalt pavement supply without geographical or seasonal constraints
    (e.g., areas without asphalt plants, islands, winter conditions)
  • Contributing to resource recycling and environmental conservation
  • Enhancing economic efficiency through cost reduction
  • Facilitating asphalt temperature control and improving pavement durability
  • Maintaining the function of specialized pavements
    (e.g., modified, low-noise, porous, waterproof, and colored asphalt)
  • Facilitating the advantage of the speed of bagged asphalt and the durability of hot mix asphalt

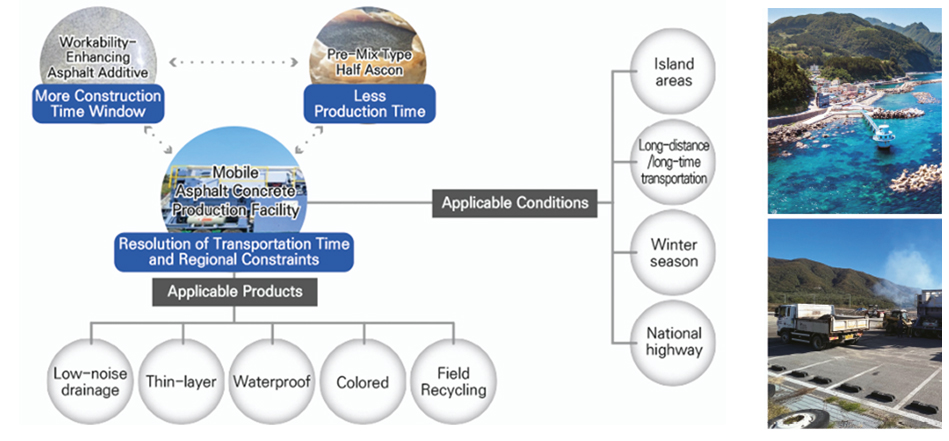

System Application Areas
Technology Rapidity (Immediate repair) Durability (Quality)
Bagged Asphalt Concrete O X
Hot Mix Asphalt (HMA) X O
FR SYSTEM O O

Specifications - Mobile Asphalt Concrete Production Facility

FR-APS (Large scale)
FR-APS
Hopper Weighing equipment Mixer Heating equipment Power genarator generation equipment Production capacity
4m3 Weighing aggregates and additives Primary screw mixer, Secondary twin-shaft mixer Direct-fired, Hot air circulation Three-phase electricity 30~60 ton/hr
FR-S (Small scale)
FR-S
Hopper Weighing equipment Mixer Heating equipment Power genarator generation equipment Production capacity
500~1,000kg Weighing, ton-bag packaging 300/500/1,000kg/batch Direct-fired, Hot air circulation Three-phase electricity 6~15 ton/hr

Applications : Field Recycling

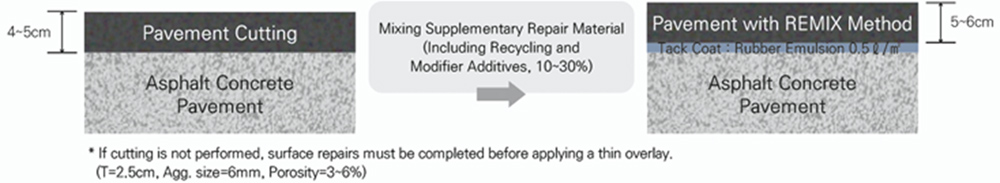

REMIX Construction Method

  • Cutting after laying Supplementary Repair Material (Aggregate + AP + Recycling Additives + Modifier: Ton-Bag Asphalt)
  • A Type : Cutting after spraying Liquid Supplementary Material (AP + Recycling Additives + Modifier) : 100% reuse of recycled aggregates
  • B Type : Cutting after spraying Liquid Supplementary Material and aggregate : 100% recycled material with 10~30% aggregate supplement
  • Ton-Bag asphalt concrete (Using recycling modifier additives)
  • Production by mixing with Ton-Bag Supplementary Repair Material
  • After spraying ton-bag asphalt mixed with recycling modifier additives, cold-cut together.
  • Heating and mixing cut materials on-site for production and paving
  • Laying Ton-Bag Supplementary Repair Material after adjusting the particle-size distribution of crushed aggregate
  • Applied to on-site road maintenance

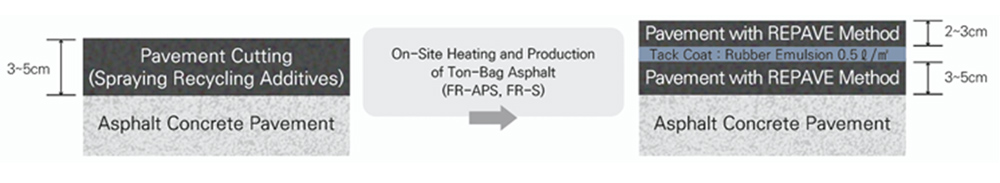

REPAVE Construction Method

  • Ton-Bag asphalt concrete (Modifying type, Low-noise type)
  • Agg. size : 6 mm
  • Apply recycling additives to the surface, perform cold cutting, then mix with waterproof asphalt additives to produce and lay recycled waterproof asphalt.
  • Apply a functional thin layer of Ton-Bag asphalt (Modified asphalt, Low-noise asphalt) on top.

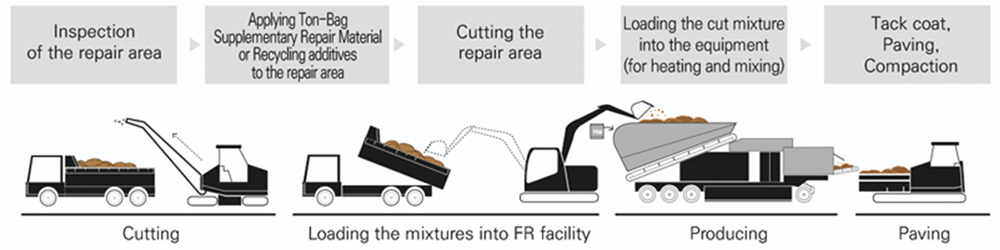

Construction sequence

Applications : Field Recycling (On-site fixed setup)

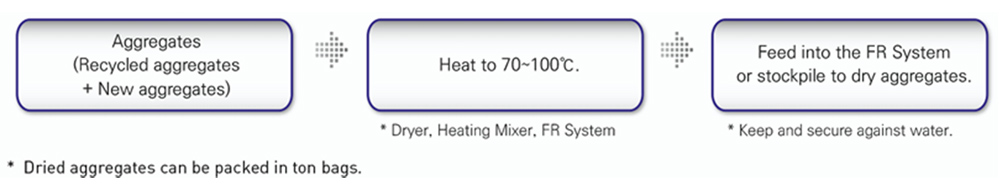

1. Aggregate Drying Process

  • Heat to 70~100℃ (Moisture content below 0.5%)
  • Drying method : Dryer, Heating Mixer, FR System
  • If the specifications are met, 100% of recycled aggregates can be used.

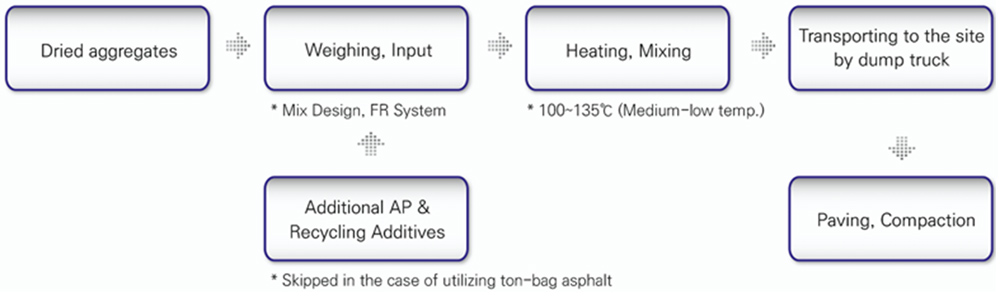

2. Production Process

  • Feed dried aggregates, asphalt, and low-temperature additives (In case of using recycled aggregates, recycling additives need to be added.) into the FR System, and conduct heating and mixing process at medium-low temperature for production.
  • Place dried aggregates, asphalt, and low-temperature additives into the FR System, and heat them at low temperatures for production.

3. Conducting quality control tests

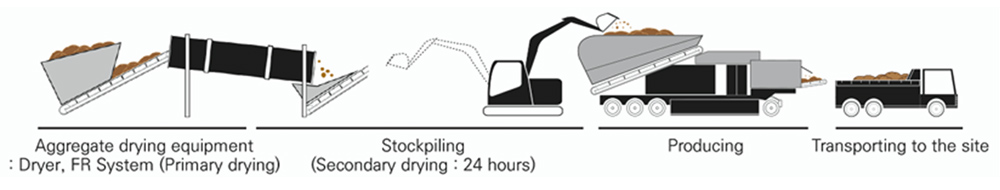

Aggregate Drying Process

Production Process

Construction sequence

  • Fixed production method : All items
